Check Valve

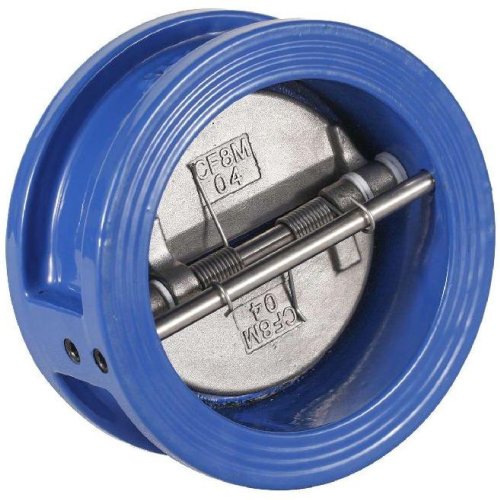

Leading Manufacturers, Exporters, Wholesaler and Retailer of Carbon Steel Wafer Check Valve, Cast Carbon Steel Swing Type Bolted Cover Check Valve, Cast Iron Swing Type Bolted Cover Check Valve, Dual Plate Wafer Check Valve, FCS Class 600 Piston Lift Type Check Valve, Forged Alloy Steel Bolted Cover Check Valve, I.C Non Return Class 150 Swing Type Check Valve, Non Slam Disc Check Valves and Stainless Steel 304 Wafer Check Valve from Sabarkantha.
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Body | EN 8 |
| Pin | 13 Cr TO AISI 410 | 18 Cr 8 Ni TO AISI 304 | 316 |
| Rings | Moulded Neoprene | Nitrile | Ptfe |
| MFG STD | Generally Conforming to Api 6d |
| Test STD | Generally Conforming to Api 6d |
| ENDS | Wafer Type |
| Hyd-test Pressure Body | 225 Psig (16 Kg/Cm ²) |
| Hyd-test Pressure Seat | 165 Psig (11.5 Kg/Cm ²) |
| Size Range | 25 MM TO 600 MM |
| Brand Name | Avion |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| BODY | COVER | ASTM A 216 Gr WCB | WC1 | WC6 | WC9 | LCB |
| TRIMS | 13 Cr | 18 Cr 8 Ni |
| MFG STD | BS 1868 |
| INSP & TEST STD | BS 6755 |
| ENDS | Flanged to Asme B 16.5 Rf |
| Operation | Automatic |
| Hyd-test Pressure Body | 425 Psig (30 Kg/Cm ²) |
| Hyd-test Pressure Seat | 300 Psig (21 Kg/Cm ²) |
| Size Range | 25 MM TO 1200 MM |
| Brand Name | Avion |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Body | Cover | IS 210 Gr FG 200 | 220 |
| TRIMS | 13 Cr | 18 Cr 8 Ni |
| MFG STD | Generally Conforming to Bs 1868 |
| Insp & Test Std | Generally Conforming to Bs 6755 |
| ENDS | Flanged to Asme B 16.1 Ff |
| Operation | Automatic |
| Hyd-test Pressure Body | 225 Psig (16 Kg/Cm ²) |
| Hyd-test Pressure Seat | 165 Psig (11.5 Kg/Cm ²) |
| Size Range | 25 MM TO 700 MM |
| Brand Name | Avion |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Body | ASTM A 216 Gr WCB | WC1 | WC6 | WC9 | LCB |
| Closure Plate (DISC) | SS 304 | SS 316 |
| Hing Pin | AISI 304 | AISI 316 |
| Stop Pin | AISI 304 | AISI 316 |
| Spring | Stainless Steel |
| Seat | EPDM |
| MFG STD | Generally Conforming to Api 6d | Api 594 |
| INSP & TEST STD | Generally Conforming to Api 6d | Api 598 |
| ENDS | Wafer Type to Suit Ansib 16.5 (150#) |
| Hyd-test Pressure Body | 425 Psig (30 Kg/Cm ²) |
| Hyd-test Pressure Seat | 300 Psig (21 Kg/Cm ²) |
| Size Range | 50 MM TO 600 MM |
| Brand Name | Avion |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Body | Cover | ASTM A 105 |
| TRIMS | 13 Cr |
| MFG STD | BS 5352 |
| INSP & Test STD | BS 6755 |
| ENDS | Flanged to Asme B16.5 Rf (600#) |
| Hyd-test Pressure Body | 2175 Psig (153 Kg/Cm ²) |
| Hyd-test Pressure Seat | 1600 Psig (112 Kg/Cm ²) |
| Size Range | 15 MM TO 50 MM |
| Brand Name | Avion |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Body | Cover | ASTM A 182 Gr F-11 | F-22 |
| TRIMS | 13 Cr TO AISI 410 |
| MFG STD | BS 5352 |
| INSP & TEST STD | BS 6755 |
| ENDS | Screwed TO BSP | BSPT | NPT, Socket Weld to Asme B 16.11 |
| Hyd-test Pressure Body | 3000 Psig (211 Kg/Cm ²) |
| Hyd-test Pressure Seat | 2000 Psig (140 Kg/Cm ²) |
| Size Range | 15 MM TO 50 MM |
| Brand Name | Avion |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Body | Cover | ASTM A 216 Gr WCB | CF8 | CF8M | CF3 | CF3M |
| TRIMS | 13 Cr | 18 Cr 8 Ni |
| MFG STD | BS 1868 |
| INSP & TEST STD | BS 6755 |
| Ends | Flanged TO ASME B 16.5 RF |
| Operation | Automatic |
| Hyd-test Pressure Body | 425 Psig (30 Kg/Cm ²) |
| Hyd-test Pressure Seat | 300 Psig (21 Kg/Cm ²) |
| Size Range | 25 MM TO 300 MM |
| Brand Name | Avion |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Body | ASTM A 361 Gr CF8 | CF8M | CF3 | CF3M |
| DISC | SS 304 | SS 316 |
| Spring | Stainless Steel |
| Spring Retainer | AISI 304 | AISI 316 |
| Seat | Metal to Metal | Epdm | Nitrile | Ptfe |
| INSP & TEST STD | API 598 |
| ENDS | Wafer Type for 15 Mm to 200 Mm, Screwed End for 15 Mm to 100 Mm |
| Hyd-test Pressure Body | 854 Psig (60 Kg/Cm ²) |
| Hyd-test Pressure Seat | 569 Psig (40 Kg/Cm ²) |
| Size Range | 15 MM TO 200 MM |
| Brand Name | Avion |
Preferred Buyer From
| Location | Worldwide |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Body | ASTM A 351 Gr CF8 | CF8M | CF3 | CF3M |
| Pin | 18 Cr 8 Ni TO AISI 304 |
| Rings | Moulded Neoprene | Nitrile | PTFE |
| MFG STD | Generally Conforming to Api 6d |
| Test STD | Generally Conforming to Api 6d |
| ENDS | Wafer Type |
| Hyd-test Pressure Body | 225 Psig (16 Kg/Cm ²) |
| Hyd-test Pressure Seat | 165 Psig (11.5 Kg/Cm ²) |
| SIZE RANGE | 25 MM TO 600 MM |
| Brand Name | Avion |
Preferred Buyer From
| Location | Worldwide |
